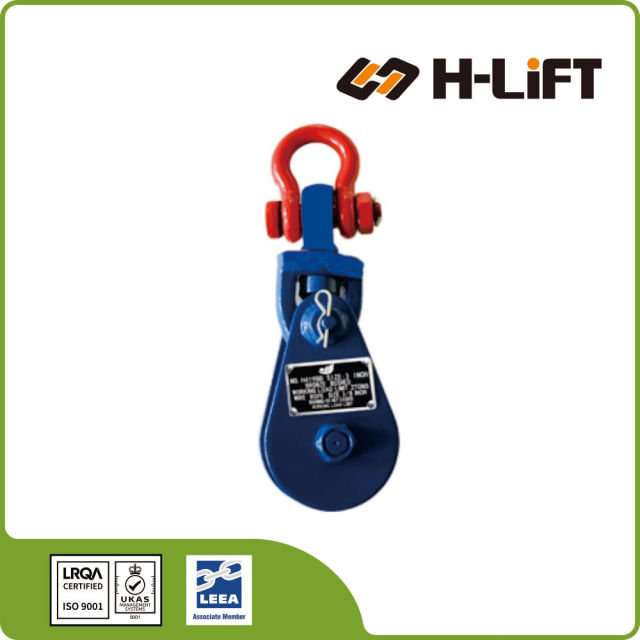

This Light Duty Snatch Block with Shackle provides a highly secure connection point for lightweight lifting, pulling, and rigging operations, effectively doubling pulling capacity and redirecting wire rope lines.
Every light duty snatch block frame is manufactured from high-tensile structural steel plates, paired with a precision-machined cast steel or ductile iron sheave. Suspended by a heavy-duty, drop-forged alloy steel shackle top fitting, the assembly is engineered to provide high strength-to-weight ratios and maximum securement safety.
The 419 Light Duty Snatch Block is a single-sheave rigging block fitted with a drop-forged shackle pin. It is engineered for hoisting, lifting, pulling, and dragging loads across construction, industrial maintenance, and heavy vehicle recovery applications. The shackle attachment ensures a high-security connection to anchor points, master rings, or pad eyes, preventing accidental disengagement under heavy vibration.
Never exceed the Working Load Limit (WLL). Capacities range from 2 tons up to 15 tons depending on the specific model selected. Always ensure the shackle pin is fully seated and tightened before applying line pull.

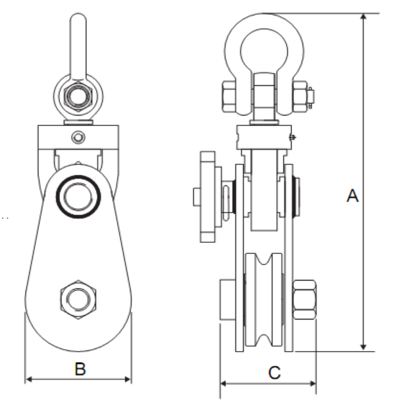

Below are the detailed technical specifications and dimensional parameters for the 419 Series Light Duty Snatch Block with Shackle:
| Item No. | Sheave Dia. (inch) |
Capacity (t) | Rope Dia. (in) |
A (mm) | B (mm) | C (mm) | Wire Rope Size (mm) |
Weight (kg) | Product Code |
|---|---|---|---|---|---|---|---|---|---|
| LDS419003 | 3 | 2 | 3/8 | 253 | 79 | 68 | 7-9 | 2.35 | 1710419003 |
| LDS419004 | 4-1/2 | 4 | 1/2 | 360 | 108 | 91 | 10-12 | 5.8 | 1710419004 |
| LDS419006 | 6 | 8 | 3/4 | 465 | 152 | 107.5 | 16-18 | 12.5 | 1710419006 |
| LDS419008 | 8 | 8 | 3/4 | 554 | 203 | 107.5 | 16-18 | 15.5 | 1710419008 |
| LDS419010 | 10 | 8 | 3/4 | 572 | 254 | 107.5 | 16-18 | 22.0 | 1710419010 |
| LDS419012 | 12 | 8 | 3/4 | 645 | 306 | 107.5 | 16-18 | 26.5 | 1710419012 |
| LDS419014 | 14 | 8 | 3/4 | 717 | 356 | 107.5 | 16-18 | 37.0 | 1710419014 |
| LDS419016 | 16 | 15 | 7/8 | 855 | 416 | 135 | 20-22 | 55.5 | 1710419016 |
| LDS419018 | 18 | 15 | 1 | 916 | 464 | 135 | 24-26 | 65.5 | 1710419018 |
